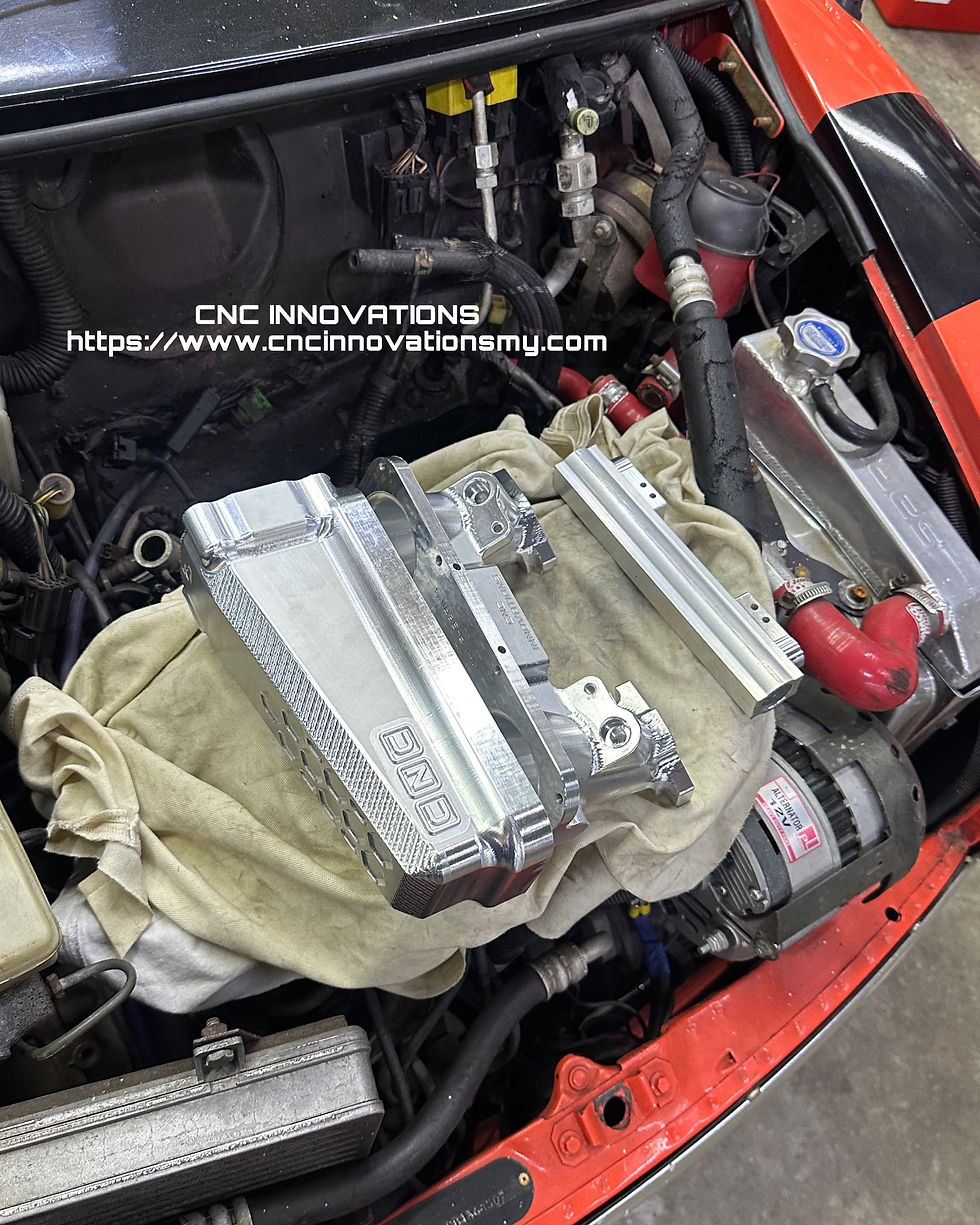

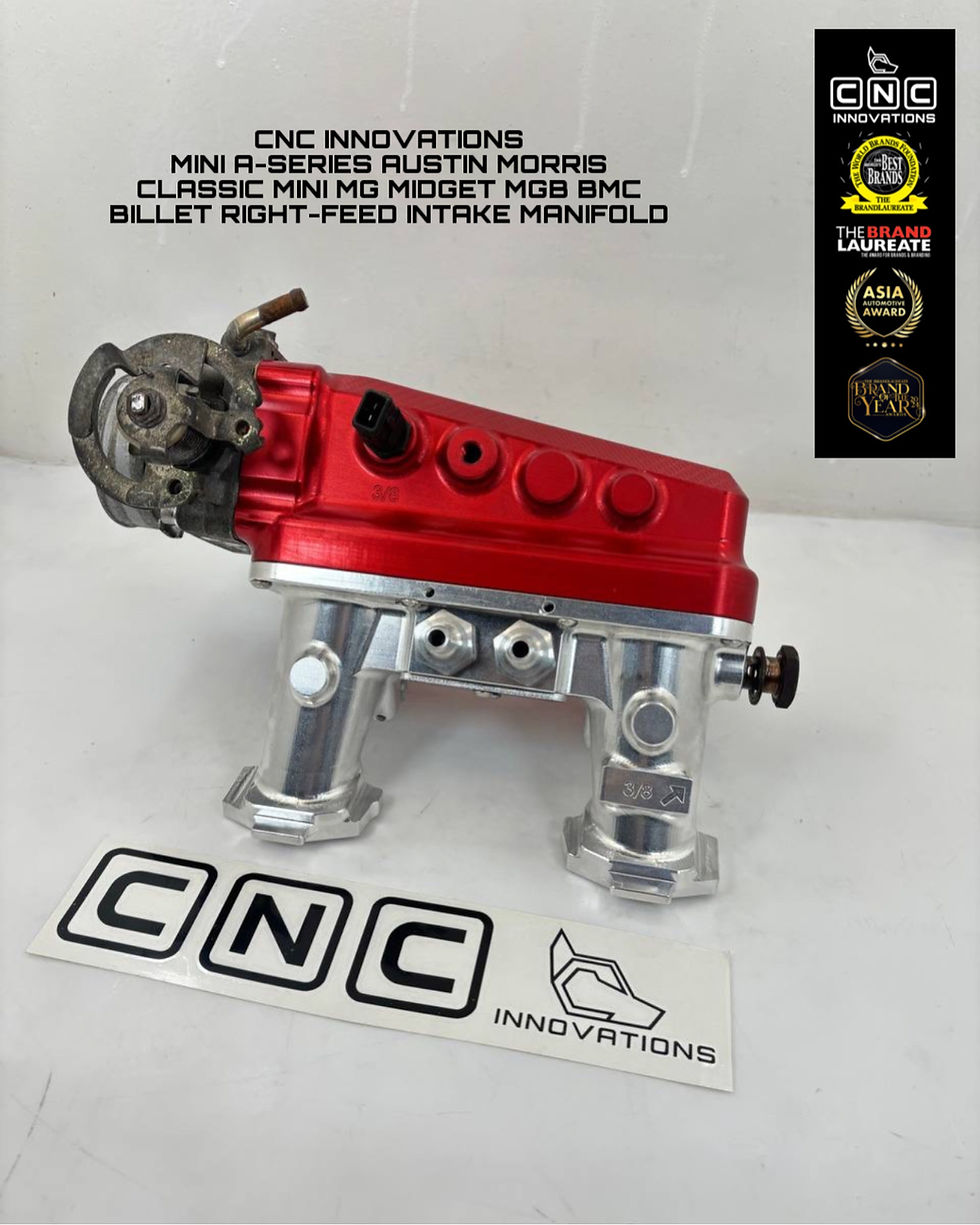

MINI A-SERIES AUSTIN MORRIS CLASSIC MINI MG MIDGET MGB BMC BILLET RIGHT-FEED INTAKE MANIFOLD


- Improved air flow and the shape.

Complete Intake Manifold Set:

This Fully billet and CNC Machined comprehensive set includes everything you need for a high-performance intake manifold assembly:

• Plenum & Runner: Precision-engineered components for optimal airflow and performance.
•Billet Performance Fuel Rail & Bracket: Securely mounts the fuel rail, ultimate fuel supply with optional return and optional pressure sensor bracket ensuring reliable fuel delivery.

•Fittings: optional AN fitting size (AN4, AN6, AN8, AN10, AN12, AN16, AN20 ) and hose fittings are available. We will provide any size you need based on your specific request, ensuring a perfect fit for your setup.

•Optional Billet Performance Fuel Rail and Injector Ports: Available upon request. You can choose to have the injector ports fully drilled through, or drill them yourself when you need to use additional fuel rail using an OD10mm drill bit.
(Please note that for the additional injector holes requested by the customer, we will ensure that the O-ring hole is machined precisely.
However, we will not drill through the lower part of the hole.)
Additionally, if there is a request for compatibility with aftermarket injector sizes, such as Bosch or Dynamic, please let us know so we can accommodate that as well.

•Teflon Gasket: A durable gasket for the intake manifold flange, ensuring a tight, leak-free seal. (If required)

•Hose Fittings:
Includes the following:
o            1/8-28 NPT/BSPT OD8.0mm hose fitting (if needed)
o            1/8-28 NPT/BSPT OD5.0mm hose fitting (if needed)
o            1/4-19 NPT/BSPT OD10.0mm hose fitting (if needed)

• Throttle Body Adapter: We will provide a suitable adapter for any size and model throttle body you want to use. Just include a note with your order specifying the size and model of your throttle body, including the internal diameter (ID) and the center-to-centre measurements of the mounting holes and tapping size. Or send us your throttle body and we will do it accordingly.
This set offers everything needed for a seamless installation and enhanced performance, with options for customization to meet specific requirements.

Our billet intake manifold has been proven and tested throughout Advance CFD simulation Air flow and pressure test computer softwares during the designing process.

Methanol nozzle :Designed for potential methanol nozzle placement to enhance fuel delivery efficiency and performance

Notes:

_Loctite glue: Please note that we provide a Loctite glue with your purchase to ensure secure installation. We highly recommend applying this thread locker to the screws during assembly. Additionally, it is important to check that all screws are properly tightened to prevent any issues during use. Proper installation and maintenance will help ensure the longevity and performance of your product

_Anodizing colour: Choose from our vibrant anodizing colours: Red, Blue, Black, Purple, Gold, and Green. If you want to mix and match, simply include a note with your order, and we'll customize it just the way you like.

_Custom logo: Please note that while the CNC Innovations logo remains on all parts, we offer the option to add your custom logo alongside it for an additional charge.

Thank you for your support

MATERIAL:
Fully Billet and CNC machined from Aluminium 6061 T6
-6061 T6 aluminium has high strength, high hardness (up to HB90 degrees), good processing effect, minimum distortion during machining and high pressure tolerance.



ANODIZING COLOR:
Anodizing colour (RED, BLUE, BLACK, PURPLE, GOLD, GREEN,)
Benefits of Anodizing colour:
resistant to corrosion
outstanding look to your part
provide some surfaces


TEFLON GASKET BENEFIT:
Temperature Resistance up to 372°C
it's not only a perfect seal but it is reasable and easy to install
it has been used by many famaus car performance around the world and recommended by many racer and mechanic
it will provide a perfect seal
