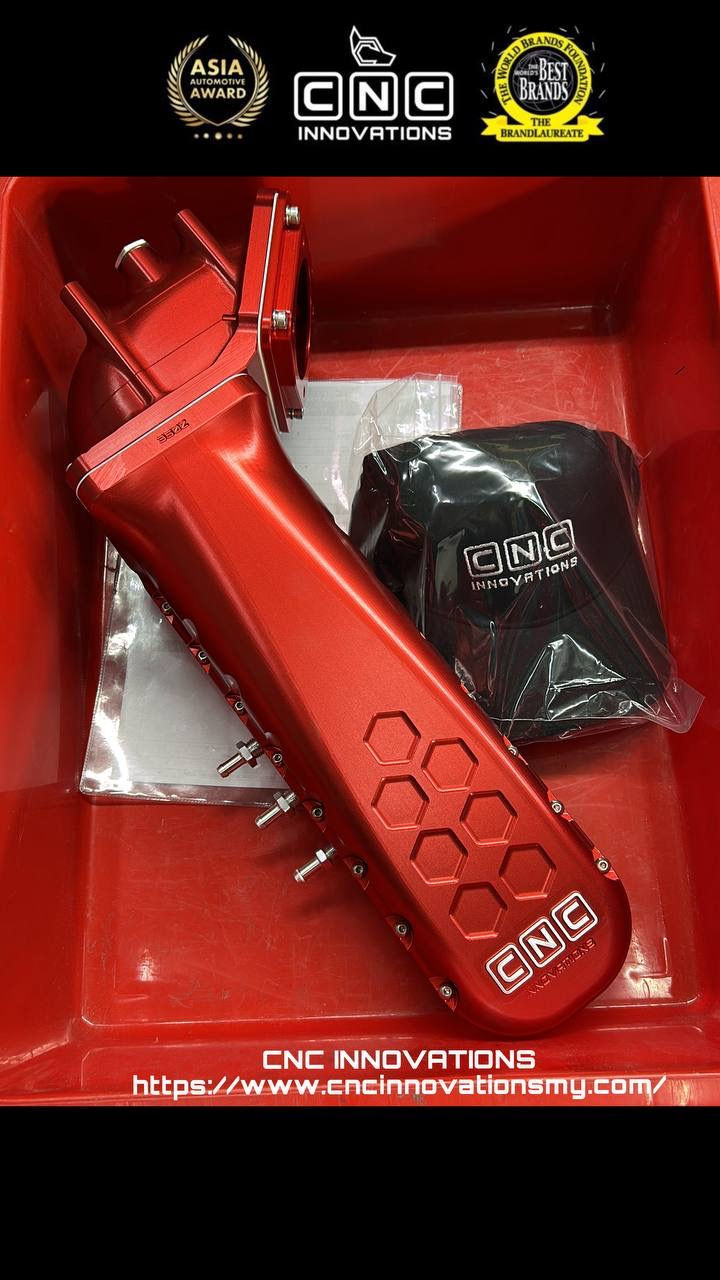

NISSAN 350Z INFINITI G35 VQ35DE 3.5L BACKWARD FACING WITH ELBOW NECK
DESCRIPTION:
Please take note that you may need to modify some part of your front hood or move the engine in lower in lower position order to fit it in front facing position.
Please take note we have another design for this model which has throttle body elbow adapter which allows you to install the intake manifold and throttle body in almost same position as the original intake manifold.
THIS IS THE LINK FOR ELBOW ADAPTER DESIGN :
Nissan 350z Infinity G35 VQ35DE 3.5L V6 Z33 350Z Intake Manifold with Rotatable
- Improved air flow and the shape.
Complete Intake Manifold Set:
This Fully billet and CNC Machined comprehensive set includes everything you need for a high-performance intake manifold assembly:

• Plenum : Precision-engineered components for optimal airflow and performance.

•Teflon Gasket: A durable gasket for the intake manifold flange, ensuring a tight, leak-free seal. (If required)

•Hose Fittings:
Includes the following:
o            1/8-28 NPT/BSPT OD8.0mm hose fitting (if needed)
o            1/8-28 NPT/BSPT OD5.0mm hose fitting (if needed)
o            1/4-19 NPT/BSPT OD10.0mm hose fitting (if needed)

• Throttle Body Adapter: We will provide a suitable adapter for any size and model throttle body you want to use. Just include a note with your order specifying the size and model of your throttle body, including the internal diameter (ID) and the center-to-centre measurements of the mounting holes and tapping size. Or send us your throttle body and we will do it accordingly.
This set offers everything needed for a seamless installation and enhanced performance, with options for customization to meet specific requirements.

Our billet intake manifold has been proven and tested throughout Advance CFD simulation Air flow and pressure test computer softwares during the designing process.

Notes:

_Loctite glue: Please note that we provide a Loctite glue with your purchase to ensure secure installation. We highly recommend applying this thread locker to the screws during assembly. Additionally, it is important to check that all screws are properly tightened to prevent any issues during use. Proper installation and maintenance will help ensure the longevity and performance of your product

_Anodizing colour: Choose from our vibrant anodizing colours: Red, Blue, Black, Purple, Gold, and Green. If you want to mix and match, simply include a note with your order, and we'll customize it just the way you like.

_Custom logo: Please note that while the CNC Innovations logo remains on all parts, we offer the option to add your custom logo alongside it for an additional charge.

Thank you for your support

* Increase the Runner Internal Diameter To ID52mm (Maximum Possible)
* Readjusted the Fuel Rail Injector Port position to reduce air blockage.
* Able to use in standard setup or rotate the plenum for forward facing. (You may need our elbow throttle body adapter in order to get the same position of throttle body as the original)
* Measured carefully to clear the Support bar in case you want to use it back. Part of the Plenum will sit under the bar.

MATERIAL:
Fully Billet and CNC machined from Aluminium 6061 T6 and Multi Axis CNC Machine
-6061 T6 aluminium has high strength, high hardness (up to HB90 degrees), good processing effect, minimum distortion during machining and high pressure tolerance.

ANODIZING COLOR:
Anodizing colour (RED, BLUE, BLACK, PURPLE, GOLD, GREEN,)
Benefits of Anodizing colour:
resistant to corrosion
outstanding look to your part
provide some surfaces

TEFLON GASKET BENEFIT:
Temperature Resistance up to 372°C
it's not only a perfect seal but it is reasable and easy to install
it has been used by many famaus car performance around the world and recommended by many racer and mechanic
it will provide a perfect seal
FITMENTS :
2003, Infiniti G35 Coupe VQ35DE
2003, Infiniti G35 Sedan VQ35DE
2003, Nissan 350Z Convertible Roadster VQ35DE
2003, Nissan 350Z Coupe VQ35DE
2004, Infiniti G35 Coupe VQ35DE
2004, Infiniti G35 Sedan VQ35DE
2004, Nissan 350Z Convertible Roadster VQ35DE
2004, Nissan 350Z Coupe VQ35DE
2005, Infiniti G35 Coupe VQ35DE
2005, Infiniti G35 Coupe VQ35DE (RevUp, M/T Only)
2005, Infiniti G35 Sedan VQ35DE
2005, Infiniti G35 Sedan VQ35DE (RevUp, M/T Only)
2005, Nissan 350Z Convertible Roadster
VQ35DE
2005, Nissan 350Z Coupe VQ35DE
2005, Nissan 350Z Coupe VQ35DE (RevUp, M/T Only)
2006, Infiniti G35 Coupe VQ35DE
2006, Infiniti G35 Coupe VQ35DE (RevUp, M/T Only)
2006, Infiniti G35 Sedan VQ35DE
2006, Infiniti G35 Sedan VQ35DE (RevUp, M/T Only)
2006, Nissan 350Z Convertible Roadster VQ35DE
2006, Nissan 350Z Convertible Roadster VQ35DE (RevUp, M/T Only)
2006, Nissan 350Z Coupe VQ35DE
2006, Nissan 350Z Coupe VQ35DE (RevUp, M/T Only)
2007, Infiniti G35 Coupe VQ35DE
2007, Infiniti G35 Coupe VQ35DE (RevUp, M/T Only)
