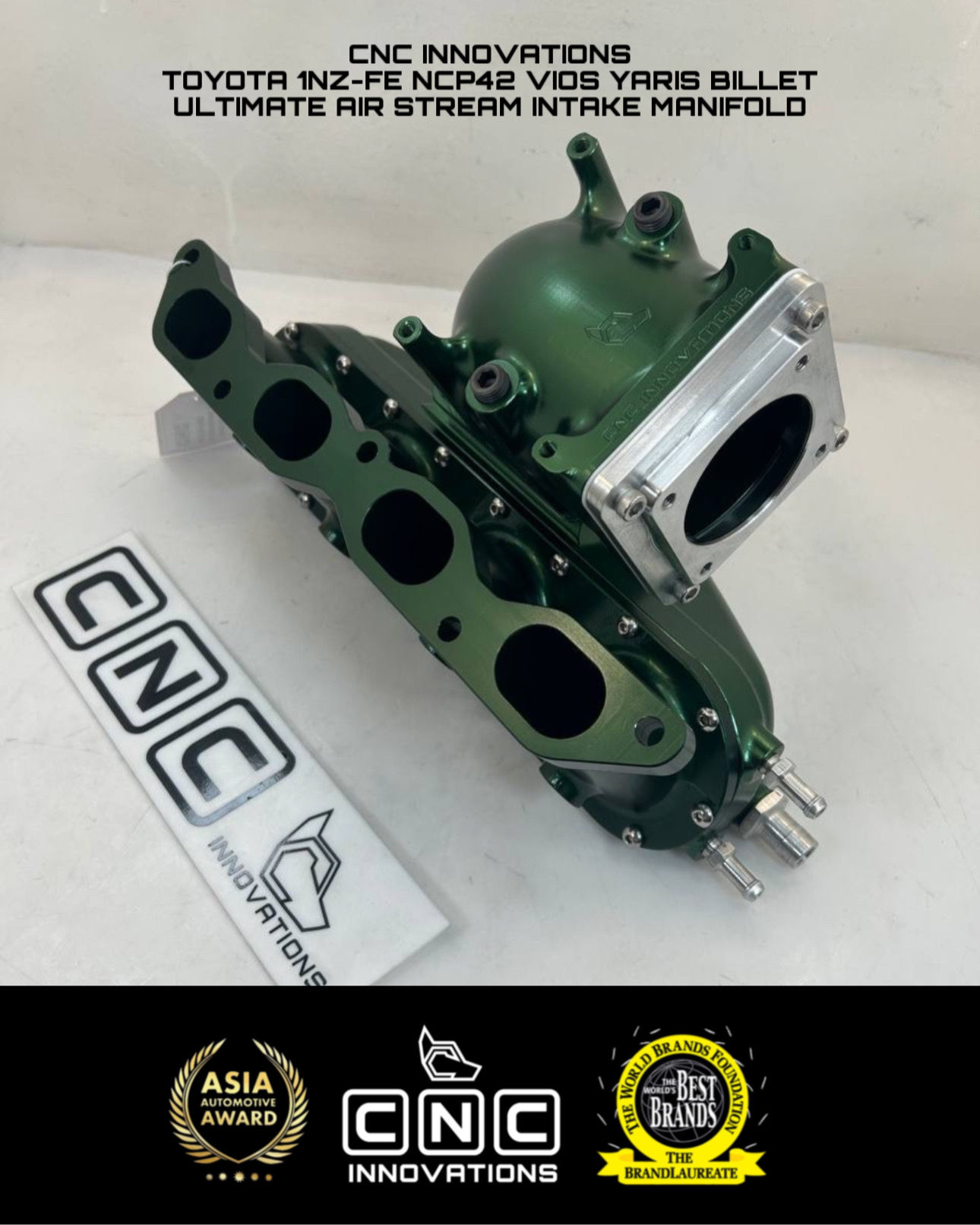

TOYOTA 1NZ-FE NCP42 VIOS YARIS BILLET ULTIMATE AIR STREAM INTAKE MANIFOLD
TOYOTA 1NZ-FE NCP42 VIOS YARIS BILLET ULTIMATE AIR STREAM INTAKE MANIFOLD
After Many hours of designing and CFD Testing, CNC INNOVATIONS proudly introducing the Ultimate Air Stream Fully Billet intake manifold for 1NZ-FE engine.
The air movement and air portion distribution among cylinders on this intake manifold is nearly perfect, with 3L internal volume it will allow 1NZ-FE owners to maximize the performance of their vehicles and push the limits further than what has been previously possible.
A SET IS INCLUDED :
- PLENUM & RUNNER
- TEFLON GASKET FOR INTAKE MANIFOLD FLANGE AND THROTTLE BODY
- 1/8-28 NPT/BSPT OD8.0MM HOSE FITTING
- 1/8-28 NPT/BSPT OD5.0MM HOSE FITTING
- 1/4-19 NPT/BSPT OD10.0MM HOSE FITTING
- - The throttle body flange will be provided according to your needs.
- - Methanol/Nitrous placing has been placed on top of the runners and we will drill and thread them through upon request.
- - it will clear NCP42 hood.
- - Thermal Teflon Gaskets will be provided.
it will clear the hood, Dipstick and radiator.
MATERIAL:
Fully Billet and CNC machined from Aluminium 6061 T6
-6061 T6 aluminium has high strength, high hardness (up to HB90 degrees), good processing effect, minimum distortion during machining and high pressure tolerance.
ANODIZING COLOR:
Anodizing colour (RED, BLUE, BLACK, PURPLE, GOLD, GREEN,)
Benefits of Anodizing colour:
- resistant to corrosion
- outstanding look to your part
- provide some surfaces
TEFLON GASKET BENEFIT:
- Temperature Resistance up to 372°C
- it's not only a perfect seal but it is reasable and easy to install
- it has been used by many famaus car performance around the world and recommended by many racer and mechanic
- it will provide a perfect seal
